High Reduction Ration Limestone Crusher Machine / Hammer Mill Crusher Simple Structure

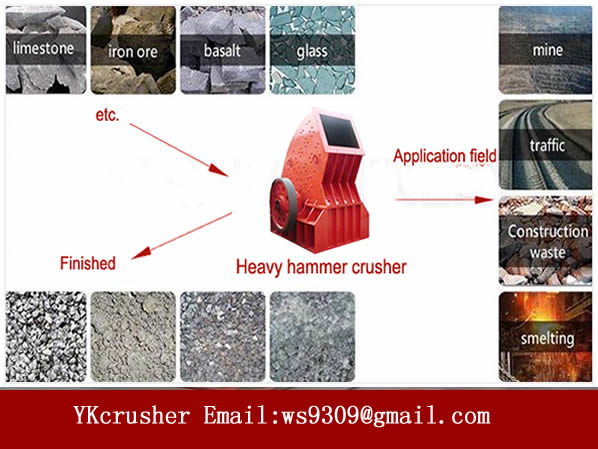

Our hammer crusher includes small hammer crusher and heavy hammer crusher. The hammer crusher also named hammer mill, it crushes by the collisions between high-speed hammer and materials, has features of simple structure, high reduction ration, high efficiency etc. The PC was developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement,coal,metallurgic, construction material, road building, and petroleum & chemical industries.The hammer crusher is one of the main equipment for intermediate and fine crushing the brittle materials with less than intermediate such as limestone coal and other used in metallurgy, building material, chemical and water - power industry, with a feature of big crushing ratio and even product graininess.The hammer crusher(hammer mill)
crushes by the collisions between high-speed hammer and materiasl,and the hammer crusher(hammer mill) features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher(hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Operating principle of Hammer Crusher

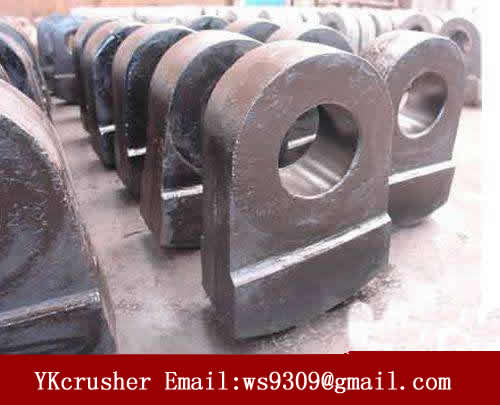

In the hammer mill machine, the motor drives the rotor rotate at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
echnical parameter of Hammer Crusher
| Type | Max Material-in size (mm) | Max Material-out size (mm) | Yield
(t/h) | Motor power
(kw) | Machine weight
(kg) |
| PC400x300 | 100 | 10 | 5-10 | 11 | 800 |
| PC600x400 | 120 | 15 | 10-25 | 18.5 | 1500 |
| PC800x600 | 120 | 15 | 20-35 | 55 | 3100 |
| PC1000x800 | 200 | 13 | 20-40 | 115 | 7900 |
| PC1000x1000 | 200 | 15 | 30-80 | 132 | 8650 |
| PC1300x1200 | 250 | 19 | 80-200 | 240 | 13600 |
Technical parameter of Heavy Hammer Crusher
| Type | Rotor diameter*Length
(mm) | Feed size(adjustable)(mm) | Discharge size(adjustable)
(mm) | Capacity
(t/h) | Power
(kw) | weight
(t) |
| 0806 | 800*600 | ≤300-400 | 0-40 | 60 | 55 | 3.8 |
| 0808 | 800*800 | ≤400-500 | 0-50 | 80-100 | 75 | 6.5 |
| 1008 | 1000*800 | ≤500-650 | 0-60 | 100-120 | 90 | 8 |
| 1010 | 1000*1000 | ≤600-750 | 0-70 | 120-150 | 132 | 11.5 |
| 1210 | 1200*1000 | ≤650-800 | 0-70 | 150-200 | 185 | 14 |
| 1510 | 1500*950 | ≤800 | 0-80 | 160-250 | 200 | 17.5 |
| 1512 | 1500*1160 | ≤800 | 0-80 | 250-300 | 250 | 19 |
| 1615 | 1650*1450 | ≤900 | 0-80 | 200-380 | 280 | 28 |
| 2015 | 2000*1500 | ≤1200 | 0-80 | 400-500 | 400 | 32 |
